Description
The FT ESC 75A 4-in-1 speed controller combines 4 channels with a continuous current of up to 75A each and is designed for a 3–6S battery power supply. This configuration allows the use of a single board to control four motors, simplifying the layout of the power section.
The 75A ESC operates on an 8-bit EFM8BB21 MCU with Bluejay firmware. It supports control via PWM, DShot 300, and DShot 600 protocols. The controller features a built-in analog current sensor to monitor the power system load; however, telemetry transmission is not supported in this model.
The board is built on a 6-layer PCB with 3oz copper. Mounting holes of 30.5 × 30.5 mm for M3 hardware simplify installation into the frame. Dimensions are 74 × 85 mm.
Wiring Diagram

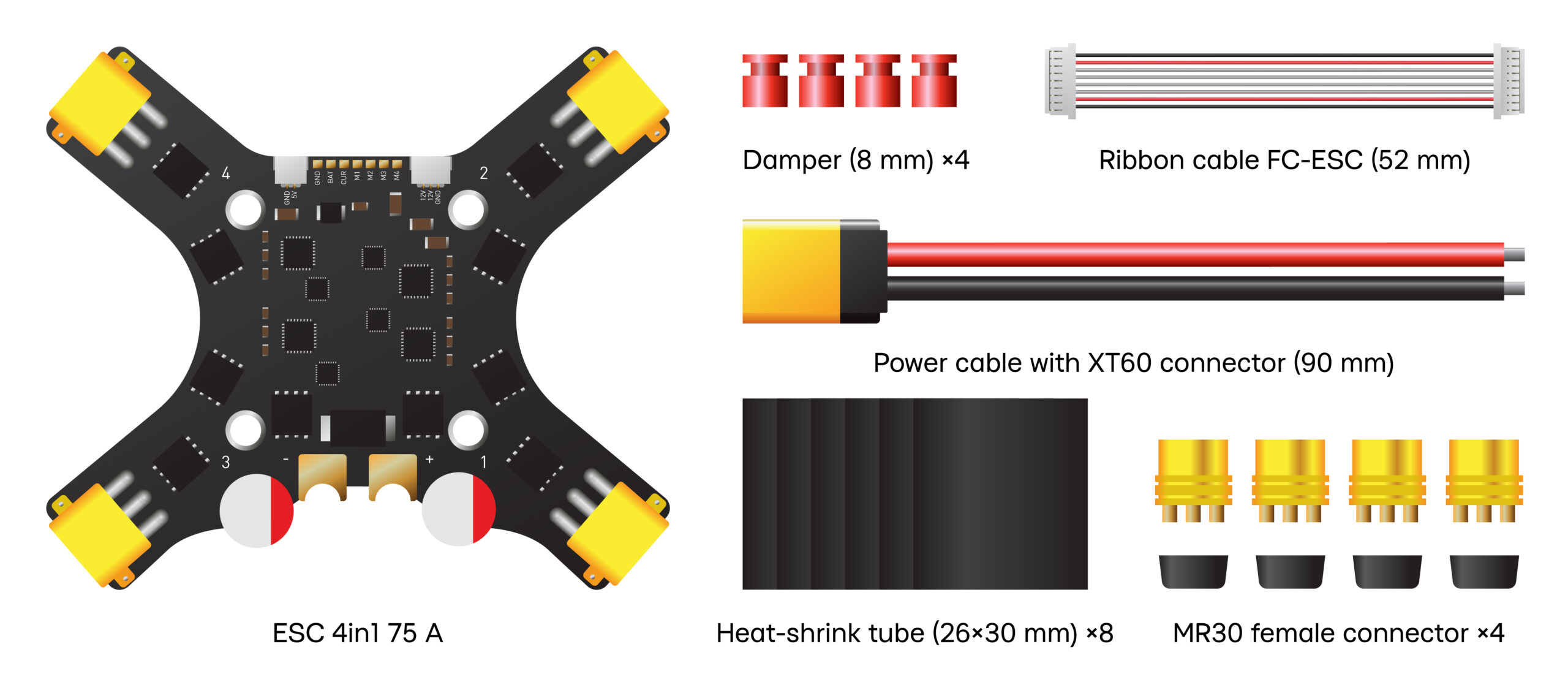

Package Contents
User Manual
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 4
- Direct Current: 75A × 4
- Peak Current: 80A × 4
- Input Voltage: 3–6S (12–26V)
- Output Voltage: VBAT
- Microcontroller (MCU): 8-bit EFM8BB21
- Firmware: BLS / Bluejay
- Protocols: PWM / DShot 300 / 600
- Current Sensor: Built-in
- Telemetry: None
- PCB: 6-layer, 3oz copper
- MOSFET: 60V / 0.9mΩ
- Capacitors: 2 × 680µF / 35V (external)
- TVS Protection: 1 × 1500W
- BEC: 5V / 3A, 12V / 2A
- Cooling: Passive
- Motor Connection: MR30 AMASS connectors (solderless)
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 74 × 85 mm
- Weight: 40 g
FT ESC 75A 4-in-1 3-6S (8-bit) Speed Controller
The FT ESC 75A 4-in-1 speed controller is a reliable solution for FPV builds with a 3–6S power supply. The board handles a continuous current of up to 75A per channel, ensuring stable control of four motors from a single device.
Manufacturer: FT3 012₴
In stock < 1000 pcs.
Description
The FT ESC 75A 4-in-1 speed controller combines 4 channels with a continuous current of up to 75A each and is designed for a 3–6S battery power supply. This configuration allows the use of a single board to control four motors, simplifying the layout of the power section.
The 75A ESC operates on an 8-bit EFM8BB21 MCU with Bluejay firmware. It supports control via PWM, DShot 300, and DShot 600 protocols. The controller features a built-in analog current sensor to monitor the power system load; however, telemetry transmission is not supported in this model.
The board is built on a 6-layer PCB with 3oz copper. Mounting holes of 30.5 × 30.5 mm for M3 hardware simplify installation into the frame. Dimensions are 74 × 85 mm.
Wiring Diagram
Package Contents
User Manual
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 4
- Direct Current: 75A × 4
- Peak Current: 80A × 4
- Input Voltage: 3–6S (12–26V)
- Output Voltage: VBAT
- Microcontroller (MCU): 8-bit EFM8BB21
- Firmware: BLS / Bluejay
- Protocols: PWM / DShot 300 / 600
- Current Sensor: Built-in
- Telemetry: None
- PCB: 6-layer, 3oz copper
- MOSFET: 60V / 0.9mΩ
- Capacitors: 2 × 680µF / 35V (external)
- TVS Protection: 1 × 1500W
- BEC: 5V / 3A, 12V / 2A
- Cooling: Passive
- Motor Connection: MR30 AMASS connectors (solderless)
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 74 × 85 mm
- Weight: 40 g
