Description
The FT 2812 1100KV motor is designed for 6–8″ builds powered by 6S (max 25.2 V). The combination of the 2812 stator, 12N14P configuration, and 1100KV rating focuses on high thrust and efficiency. This provides powerful torque and stable hovering under load.
The Ø33.3 × 36 mm rotor and 1100KV are geared toward powerful thrust with moderate current draw. Unlike high-RPM motors (e.g., 1900KV) designed for dynamics, the 1100KV version is engineered for more economical energy consumption when using large propellers.
With a power output of up to 1361.1 W and a maximum current of up to 58.1 A, the motor easily spins 6–8″ propellers. The internal resistance of 46 mΩ and turbine-style cooling minimize heat loss.
This is an ideal choice for long-range drones, heavy-lift quadcopters, and platforms requiring extended hover times. The 1100KV rating ensures smooth cruising and the necessary power reserve for transporting payloads, while the idle current is only 1.36 A.
The brushless motor is compatible with ESCs rated for currents from 60 A and supporting 6S voltage. The Ø19 mm (4 × M3) mounting base fits most frames, and an M5 nut is provided to secure the propeller on the high-precision hardened shaft (5 mm). The 18 AWG silicone cables, 250 mm in length, are convenient for installation without requiring extensions.
Features & Specifications
- 1100 RPM/V rating and Ø33.3 × 36 mm rotor for 6S voltage and 6–8″ propellers;
- maximum power up to 1361.1 W;
- turbine-style internal cooling;
- 5 mm high-precision hardened shaft;
- reliable NMB / NSK bearings;
- weight — 77 g.

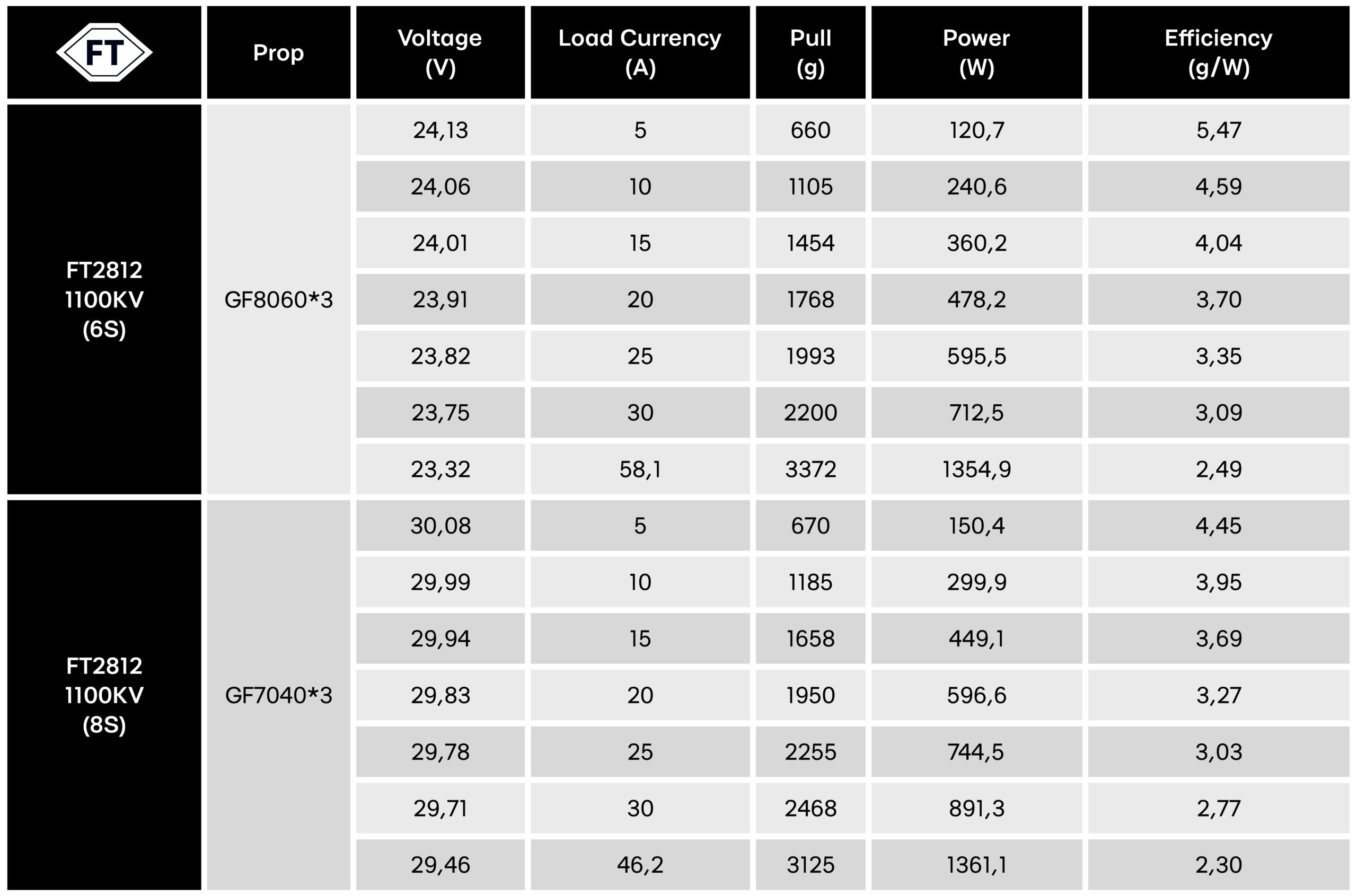

Thrust Test Results
Package Includes
- FT 2812 1100KV Motor — 1 pc.
- M3×9 Screw — 4 pcs.
- M5 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 1100 RPM/V
- Operating Voltage: 6S (max 25.2 V)
- Max Power: up to 1361.1 W
- Max Current: up to 58.1 A
- Idle Current: 1.36 A
- Internal Resistance: 46 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø33.3 × 36 mm
- Mounting Pattern: Ø19 mm (4 × M3)
- Recommended Propellers: 6″–8″
- Propeller Mount: M5 nut
- Shaft: 5 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 18 AWG, 250 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 77 g
Brushless Motor for FPV Drone FT 2812 1100KV 6S
The FT 2812 1100KV motor, featuring a Ø33.3 × 36 mm rotor and a maximum power of up to 1361.1 W, is designed for drones with 6–8 inch propellers and 6S power. It is perfectly suited for 7–8″ heavy-lift FPV and long-range drones. The motor provides sufficient torque for lifting payloads, while the moderate KV rating prevents overheating when using large propellers.
Manufacturer: FT944₴
In stock > 1000 pcs.
Description
The FT 2812 1100KV motor is designed for 6–8″ builds powered by 6S (max 25.2 V). The combination of the 2812 stator, 12N14P configuration, and 1100KV rating focuses on high thrust and efficiency. This provides powerful torque and stable hovering under load.
The Ø33.3 × 36 mm rotor and 1100KV are geared toward powerful thrust with moderate current draw. Unlike high-RPM motors (e.g., 1900KV) designed for dynamics, the 1100KV version is engineered for more economical energy consumption when using large propellers.
With a power output of up to 1361.1 W and a maximum current of up to 58.1 A, the motor easily spins 6–8″ propellers. The internal resistance of 46 mΩ and turbine-style cooling minimize heat loss.
This is an ideal choice for long-range drones, heavy-lift quadcopters, and platforms requiring extended hover times. The 1100KV rating ensures smooth cruising and the necessary power reserve for transporting payloads, while the idle current is only 1.36 A.
The brushless motor is compatible with ESCs rated for currents from 60 A and supporting 6S voltage. The Ø19 mm (4 × M3) mounting base fits most frames, and an M5 nut is provided to secure the propeller on the high-precision hardened shaft (5 mm). The 18 AWG silicone cables, 250 mm in length, are convenient for installation without requiring extensions.
Features & Specifications
- 1100 RPM/V rating and Ø33.3 × 36 mm rotor for 6S voltage and 6–8″ propellers;
- maximum power up to 1361.1 W;
- turbine-style internal cooling;
- 5 mm high-precision hardened shaft;
- reliable NMB / NSK bearings;
- weight — 77 g.
Thrust Test Results
Package Includes
- FT 2812 1100KV Motor — 1 pc.
- M3×9 Screw — 4 pcs.
- M5 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 1100 RPM/V
- Operating Voltage: 6S (max 25.2 V)
- Max Power: up to 1361.1 W
- Max Current: up to 58.1 A
- Idle Current: 1.36 A
- Internal Resistance: 46 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø33.3 × 36 mm
- Mounting Pattern: Ø19 mm (4 × M3)
- Recommended Propellers: 6″–8″
- Propeller Mount: M5 nut
- Shaft: 5 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 18 AWG, 250 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 77 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 916₴ |
| From 100 to 999 | 897₴ |
