Brushless Motor for FPV Drone FT 3115 800KV 6S–8S
The FT 3115 800KV motor, featuring a Ø37.5 × 41 mm rotor and a peak power of up to 1724.6 W, is designed for builds with 9–10 inch propellers powered by 6S–8S batteries. The large stator provides high torque for lifting heavy payloads, while the low KV rating ensures energy efficiency and prevents overheating on 10″ FPV setups, long-range builds, and heavy-lift quadcopters.
Manufacturer: FT1 451₴
In stock > 1000 pcs.
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 1 407₴ |
| From 100 to 999 | 1 378₴ |
Product description
The FT 3115 800KV motor is designed for large-scale FPV platforms and 9–10-inch long-range builds. The combination of an oversized stator and an 800KV rating provides high torque, allowing the motor to operate efficiently with large propellers and maintain thrust under load.
Thanks to the Ø37.5 × 41 mm rotor and 800KV rating, this brushless motor delivers high thrust and efficient operation in configurations with large propellers.
The motor has a peak power of up to 1724.6 W at a maximum current of up to 65.9 A. The idle current is 1.7 A, and the low internal resistance of 35 mΩ minimizes heating during long flights.
The FT drone motor for 9-10″ propellers is optimized for heavy-lift FPV platforms and long-range drones, where high thrust, smooth throttle response, minimal RPM sag, and sufficient maneuverability are crucial.
This brushless motor for long-range drones is designed for an operating voltage of 6S–8S (up to 33.6 V) and requires the use of an Electronic Speed Controller (ESC) capable of sustaining a continuous current of 70–80 A.
The Ø19 mm (4 × M3) mounting base and the high-precision 5 mm hardened shaft with an M5 nut ensure secure propeller fastening. The 250 mm long 18 AWG silicone power wires simplify soldering when building on frames with long arms.
Features & Specifications
- 800 RPM/V rating and Ø37.5 × 41 mm dimensions for 6S–8S systems and 9–10″ props;
- peak power up to 1724.6 W and maximum operating current up to 65.9 A;
- active turbine-style internal cooling;
- reliable NMB / NSK bearings;
- 5 mm hardened shaft and standard Ø19 mm (4 × M3) base;
- weight — 119 g.

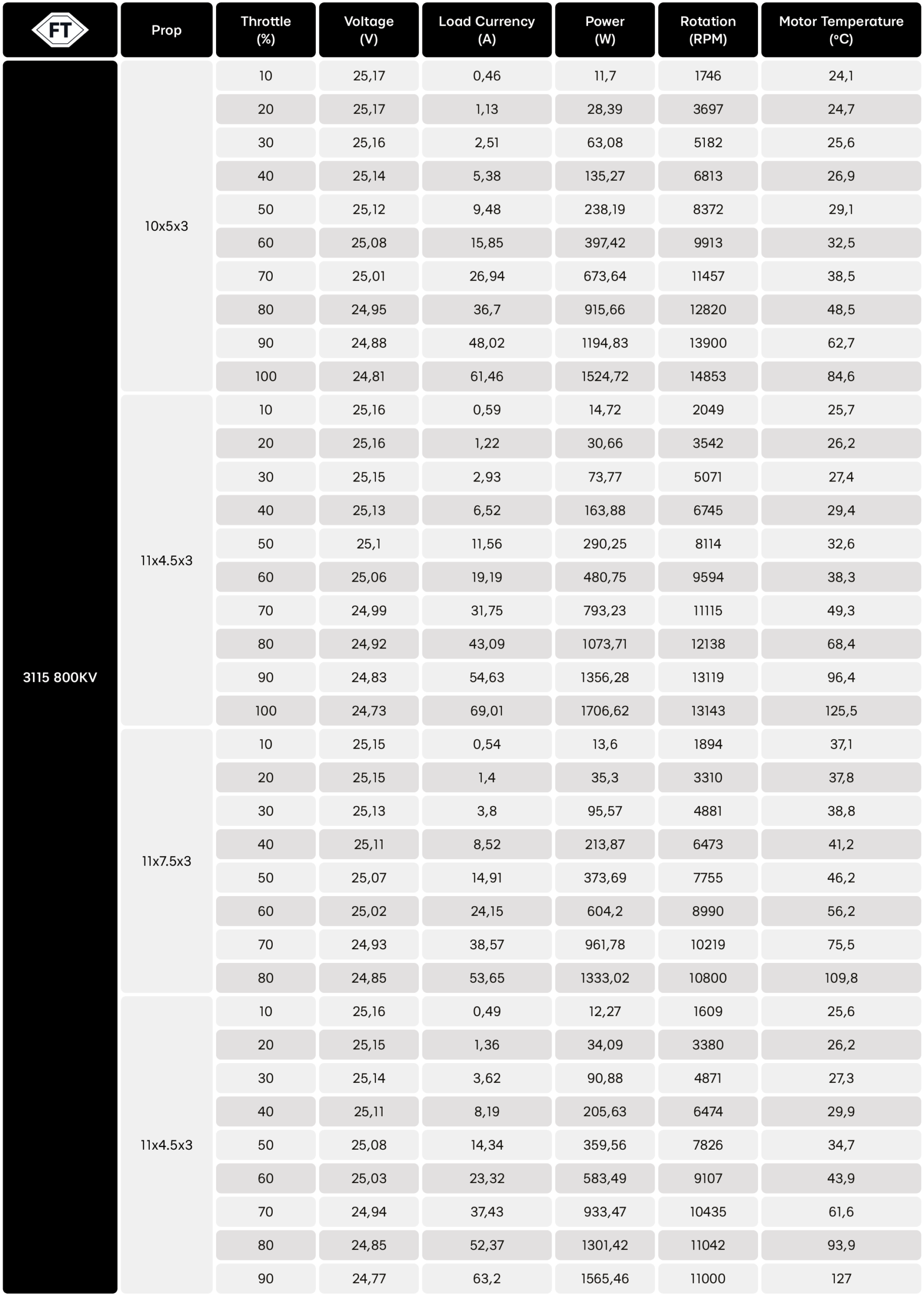

Thrust Test Results
Package Includes
- FT 3115 800KV Motor — 1 pc.
- M3×10 Screw — 4 pcs.
- M5 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 800 RPM/V
- Operating Voltage: 6S–8S (max 33.6 V)
- Max Power: up to 1724.6 W
- Max Current: up to 65.9 A
- Idle Current: 1.7 A
- Internal Resistance: 35 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø37.5 × 41 mm
- Mounting Pattern: Ø19 mm (4 × M3)
- Recommended Propellers: 9″–10″
- Propeller Mount: M5 nut
- Shaft: 5 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 18 AWG, 250 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 119 g
