Description
The FT F722 V1 flight controller is the base version based on the STM32F722RET6 MCU with a frequency of up to 216 MHz. The model is equipped with a single ICM-42688-P gyroscope, which measures the drone’s rotation around its axes and transmits data to the control system. The input voltage range is 7–36V, allowing the controller to be used in UAVs powered by 3–8S batteries.
For analog video, an AT7456E OSD chip is provided, overlaying flight information onto the camera feed. To estimate altitude based on atmospheric pressure, the FT F722 V1 flight controller features a built-in DPS310 barometer (or equivalent), while an LC filter helps reduce electrical noise in the power supply system. The built-in 16MB Blackbox memory allows flight data recording for further analysis and tuning.
The flight controller features 8 signal pads for motor control with PWM and DSHOT support, along with 5 UART ports, 1 I2C port for connecting external devices, and a BZ- pad for a buzzer. You can connect an electronic speed controller (ESC), a camera, a digital or analog video transmitter (VTX), a control receiver, a GPS module, and other compatible peripherals. An adjustable pad with a choice of 5V or V-BATT voltage is provided for powering the VTX.

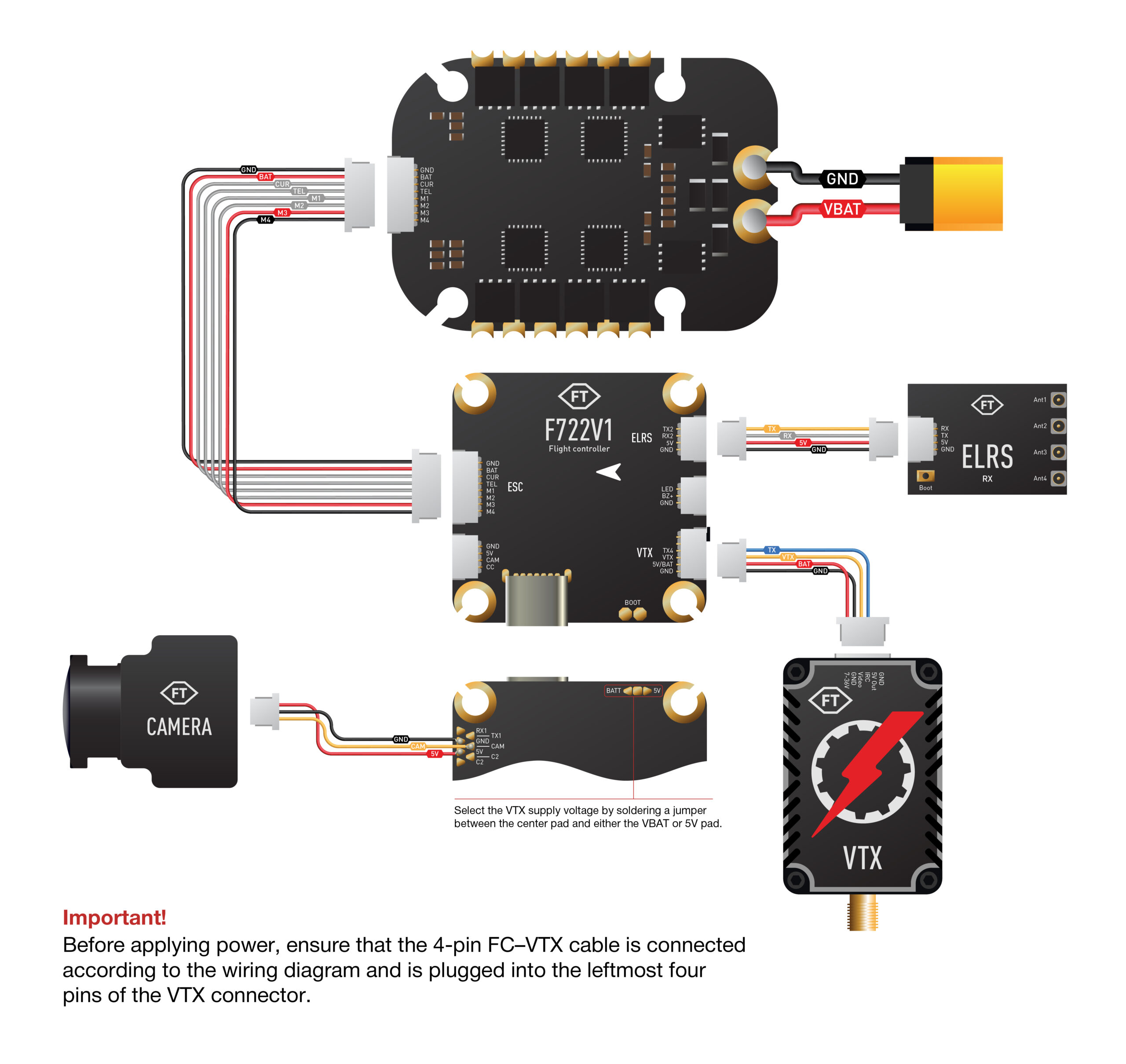

Wiring Diagram

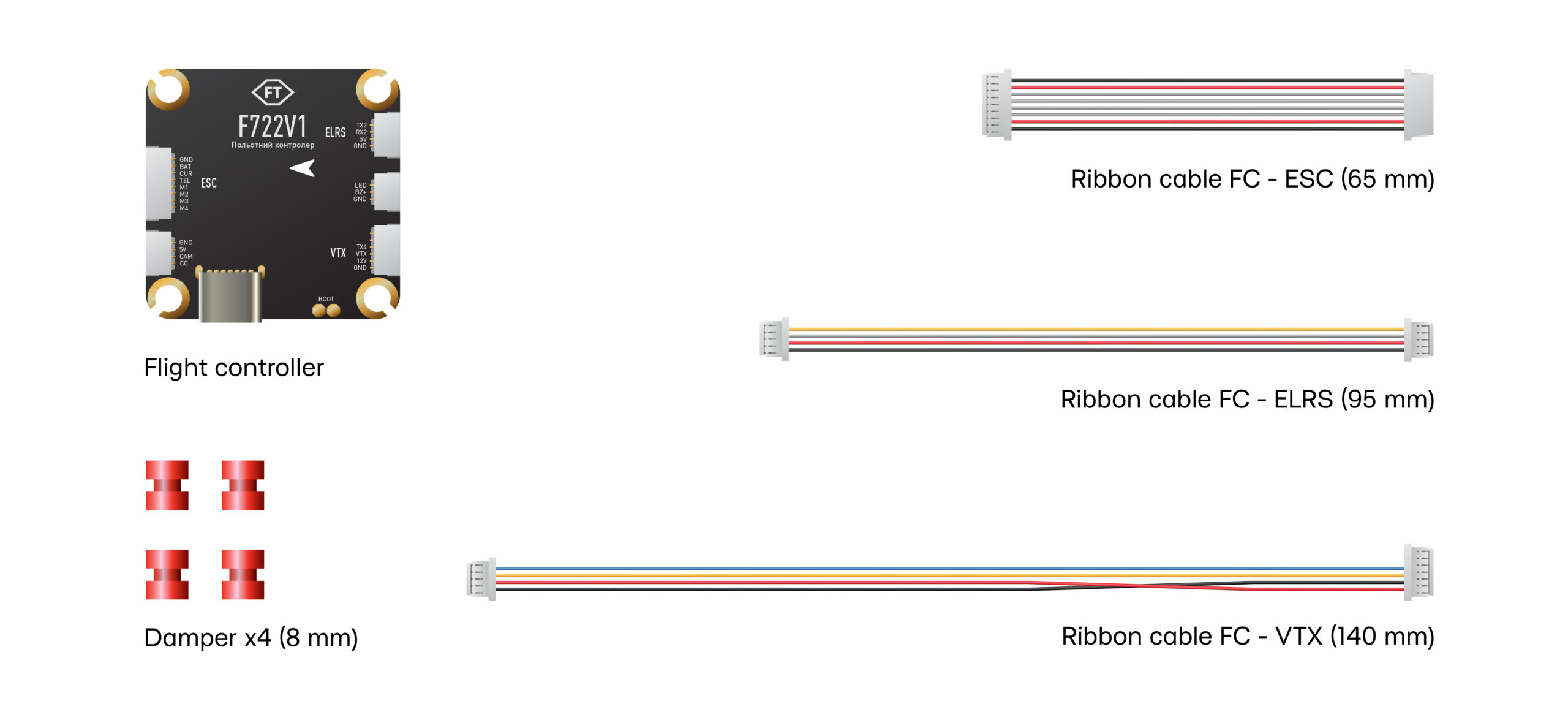

Package Contents
User Manual
Firmware File
Target File
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- MCU: STM32F722RET6 (up to 216 MHz)
- Gyroscope: ICM-42688-P or equivalent
- Barometer: DPS310 or equivalent
- OSD Chip: AT7456E (CVBS OSD)
- Blackbox Memory: 16 MB (SPI Flash) or equivalent
- Input Voltage: 3–8S (7–36V)
- BEC: 5V / 3A
- Camera Switch (CAM switch): CAM1
- Ports: 8 × PWM / 5 × UART / 1 × I2C / 2 × ADC (V-BATT / CURR-ESC) / Buzzer (BZ-)
- LC Filter: for power supply noise protection
- Mounting Pattern: 30.5 × 30.5 mm
- Hole Diameter: 4 mm (for M3 dampeners)
- Dimensions: 36.5 × 37 × 5.2 mm
- Weight: 8 g
FT F722 V1 3–8S Flight Controller
The FT F722 V1 3–8S flight controller is based on the STM32F722RET6 MCU with a frequency of up to 216 MHz and an ICM-42688-P gyroscope. Designed for a 3–8S power input, the model is equipped with an AT7456E OSD chip, 16MB of built-in Blackbox memory, and a 5V / 3A BEC to connect compatible peripherals and ensure the stable operation of onboard systems.
Manufacturer: FT2 125₴
In stock < 1000 pcs.
Description
The FT F722 V1 flight controller is the base version based on the STM32F722RET6 MCU with a frequency of up to 216 MHz. The model is equipped with a single ICM-42688-P gyroscope, which measures the drone’s rotation around its axes and transmits data to the control system. The input voltage range is 7–36V, allowing the controller to be used in UAVs powered by 3–8S batteries.
For analog video, an AT7456E OSD chip is provided, overlaying flight information onto the camera feed. To estimate altitude based on atmospheric pressure, the FT F722 V1 flight controller features a built-in DPS310 barometer (or equivalent), while an LC filter helps reduce electrical noise in the power supply system. The built-in 16MB Blackbox memory allows flight data recording for further analysis and tuning.
The flight controller features 8 signal pads for motor control with PWM and DSHOT support, along with 5 UART ports, 1 I2C port for connecting external devices, and a BZ- pad for a buzzer. You can connect an electronic speed controller (ESC), a camera, a digital or analog video transmitter (VTX), a control receiver, a GPS module, and other compatible peripherals. An adjustable pad with a choice of 5V or V-BATT voltage is provided for powering the VTX.
Wiring Diagram
Package Contents
User Manual
Firmware File
Target File
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- MCU: STM32F722RET6 (up to 216 MHz)
- Gyroscope: ICM-42688-P or equivalent
- Barometer: DPS310 or equivalent
- OSD Chip: AT7456E (CVBS OSD)
- Blackbox Memory: 16 MB (SPI Flash) or equivalent
- Input Voltage: 3–8S (7–36V)
- BEC: 5V / 3A
- Camera Switch (CAM switch): CAM1
- Ports: 8 × PWM / 5 × UART / 1 × I2C / 2 × ADC (V-BATT / CURR-ESC) / Buzzer (BZ-)
- LC Filter: for power supply noise protection
- Mounting Pattern: 30.5 × 30.5 mm
- Hole Diameter: 4 mm (for M3 dampeners)
- Dimensions: 36.5 × 37 × 5.2 mm
- Weight: 8 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 2 061₴ |
| From 100 to 999 | 2 019₴ |
