Description
The FT ESC 75A 6-in-1 speed controller combines 6 independent channels with a continuous current of up to 75A per channel and is designed for a 6–10S input voltage. It is optimal for hexacopters (up to 13 inches) with 35xx and 42xx size motors.
The ESC is rated for a peak current of up to 85A when operating on 10S, providing the necessary reliability margin. It is powered by a 32-bit ARM microcontroller running at 120 MHz with AM32 firmware. The device supports PWM, Oneshot, Multishot, and DShot protocols. Built-in current sensing and telemetry allow for monitoring the load during flight.
For motor connections, MR30 AMASS connectors are provided, which significantly simplifies maintenance. An integrated PFB filter and capacitors guarantee protection against voltage drops. The controller is built on an 8-layer PCB and features a 30.5 × 30.5 mm mounting pattern.
Wiring Diagram

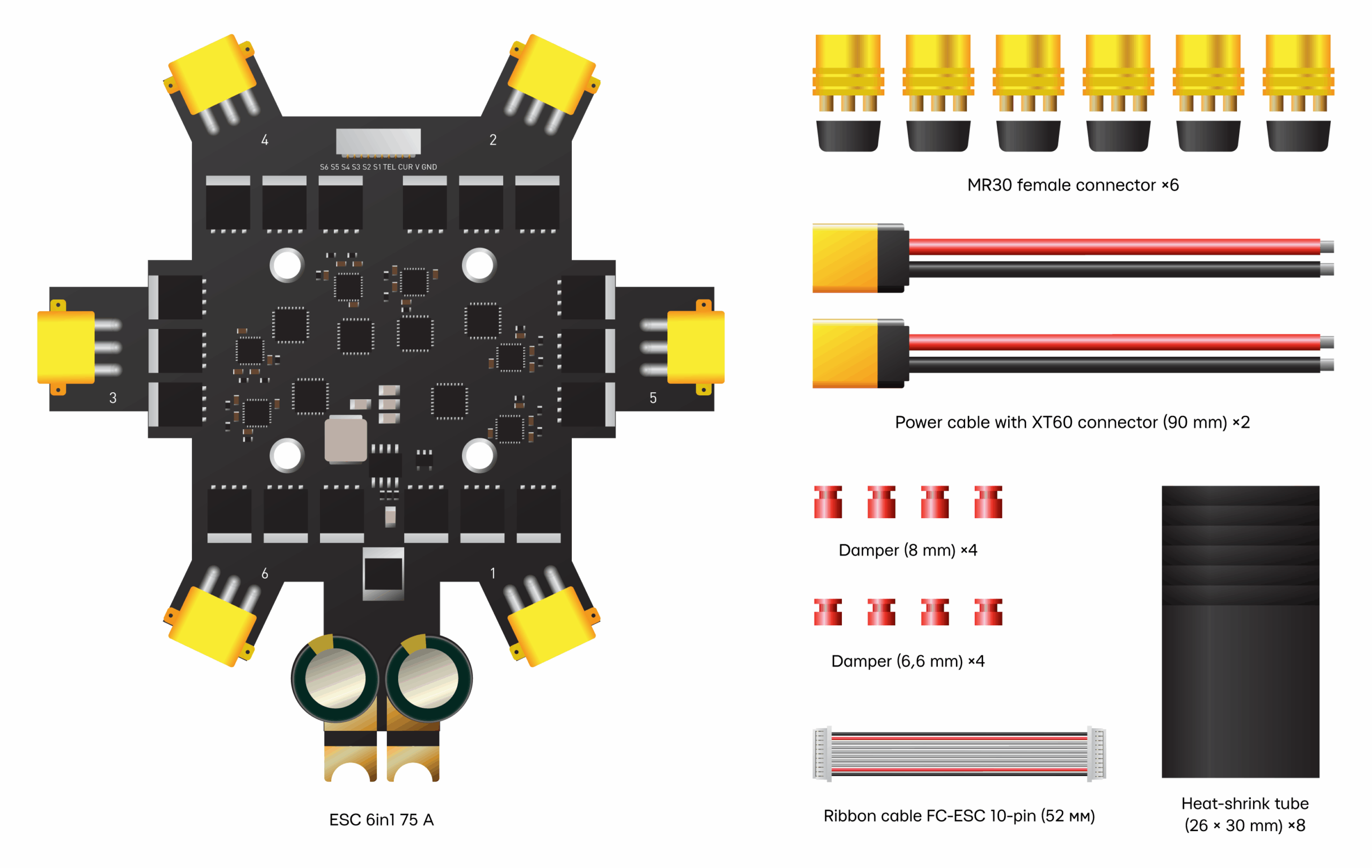

Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 6
- Direct Current: 75A × 6
- Peak Current: 85A (10S)
- Input Voltage: 6–10S (16–42V)
- Microcontroller (MCU): 32-bit ARM (120 MHz)
- Firmware: AM32 v2.18
- Protocols: PWM / Oneshot125 / Oneshot42 / Multishot / DShot 150 / 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 8-layer, 3oz copper
- MOSFET: 60V / 0.78mΩ
- Capacitors: 2 × 1000µF (external)
- Filtering: Integrated Murata PFB filter
- TVS Protection: 1 × 3000W
- BEC: None
- Cooling: Passive
- Motor Connection: MR30 AMASS connectors (solderless)
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 116 × 108 mm
- Weight: 94 g
FT ESC 75A 6-in-1 6-10S (32-bit) Speed Controller
The FT ESC 75A 6-in-1 speed controller is designed for hexacopters and powerful FPV platforms with a 6–10S power supply. Each of the 6 channels is rated for a continuous current of up to 75A. The device is powered by a 32-bit ARM microcontroller running at 120 MHz.
Manufacturer: FT5 282₴
In stock < 1000 pcs.
Description
The FT ESC 75A 6-in-1 speed controller combines 6 independent channels with a continuous current of up to 75A per channel and is designed for a 6–10S input voltage. It is optimal for hexacopters (up to 13 inches) with 35xx and 42xx size motors.
The ESC is rated for a peak current of up to 85A when operating on 10S, providing the necessary reliability margin. It is powered by a 32-bit ARM microcontroller running at 120 MHz with AM32 firmware. The device supports PWM, Oneshot, Multishot, and DShot protocols. Built-in current sensing and telemetry allow for monitoring the load during flight.
For motor connections, MR30 AMASS connectors are provided, which significantly simplifies maintenance. An integrated PFB filter and capacitors guarantee protection against voltage drops. The controller is built on an 8-layer PCB and features a 30.5 × 30.5 mm mounting pattern.
Wiring Diagram
Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 6
- Direct Current: 75A × 6
- Peak Current: 85A (10S)
- Input Voltage: 6–10S (16–42V)
- Microcontroller (MCU): 32-bit ARM (120 MHz)
- Firmware: AM32 v2.18
- Protocols: PWM / Oneshot125 / Oneshot42 / Multishot / DShot 150 / 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 8-layer, 3oz copper
- MOSFET: 60V / 0.78mΩ
- Capacitors: 2 × 1000µF (external)
- Filtering: Integrated Murata PFB filter
- TVS Protection: 1 × 3000W
- BEC: None
- Cooling: Passive
- Motor Connection: MR30 AMASS connectors (solderless)
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 116 × 108 mm
- Weight: 94 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 5 124₴ |
| From 100 to 999 | 5 018₴ |
