Description
The FT ESC 100A 1-in-1 speed controller is a powerful single-channel ESC for controlling one motor with 6–12S power support. It is convenient for installation directly on the arm near the motor and is rated for a continuous current of up to 100A.
It is optimal for heavy-lift systems with 52xx and 60xx motors, as well as for large fixed-wing UAVs. Control is provided by the STM32G071 microcontroller with AM32 firmware. PWM and DShot are supported. The current sensor and telemetry allow for accurate monitoring of operating parameters.
Through settings, you can define the rotation direction, timing, and other characteristics. The ESC is built on a 6-layer PCB with 3oz copper, features compact dimensions of 65 × 32 mm, and is designed for screwless arm mounting.

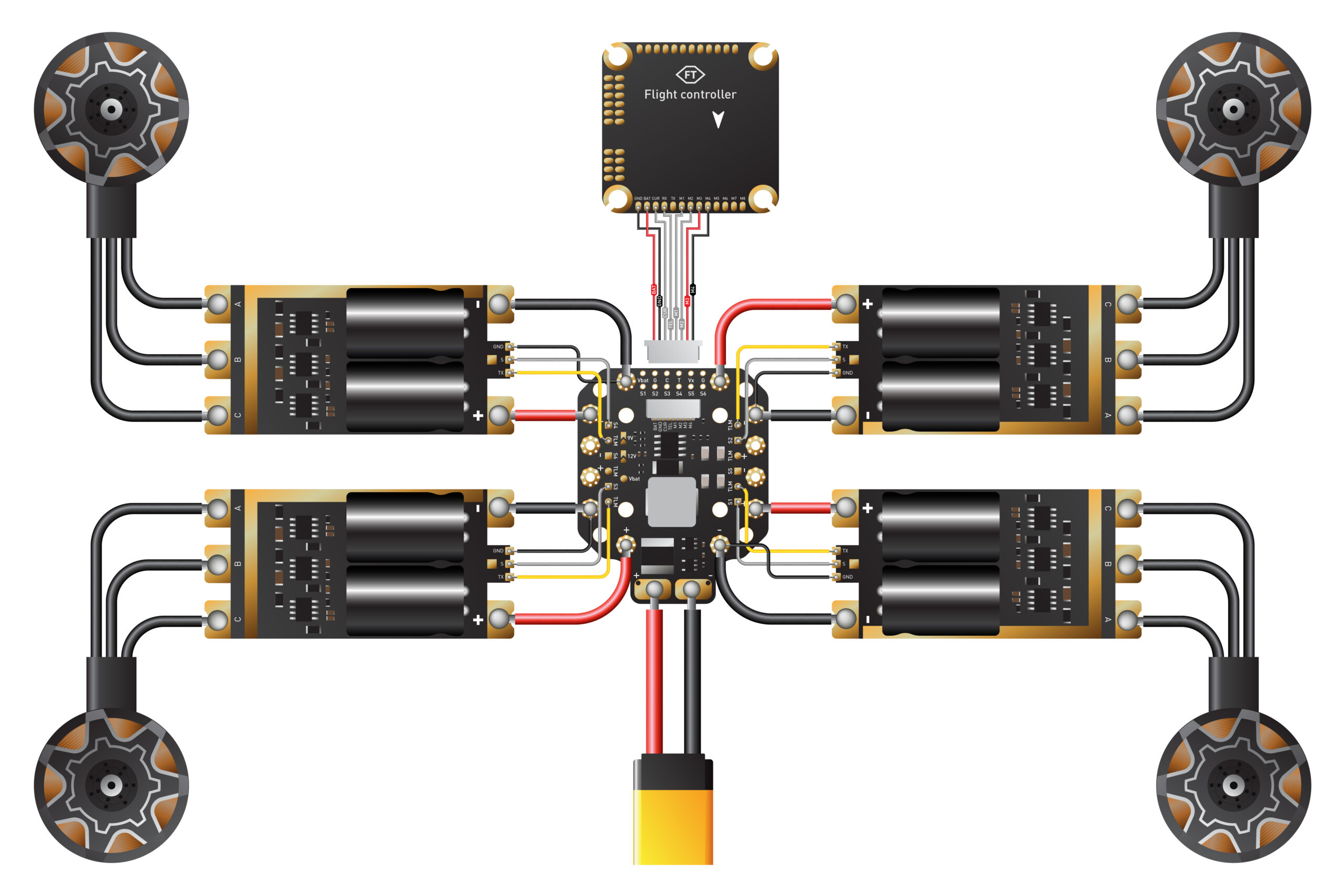

Wiring Diagram

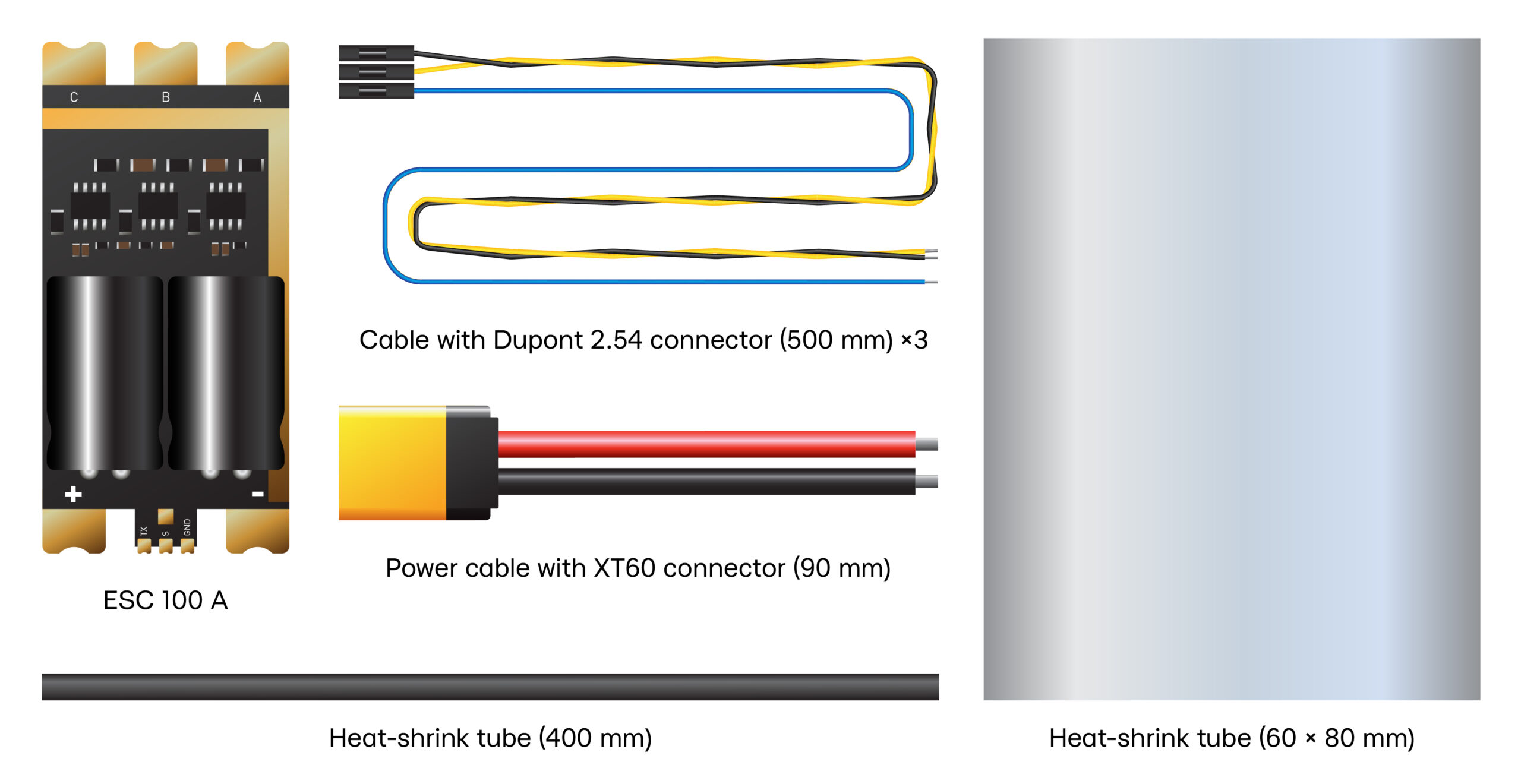

Package Contents
User Manual
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 1
- Direct Current: 100A × 1
- Peak Current: 180A
- Input Voltage: 6–12S (15–52V)
- Microcontroller (MCU): 32-bit STM32G071 (64 MHz)
- Firmware: AM32
- Protocols: PWM / Oneshot / Multishot / DShot 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 6-layer, 3oz copper
- MOSFET: 80V / 420A / 1.2mΩ (6 pcs)
- Capacitors: 2 × 470µF / 63V (external)
- BEC: None
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: Arm mount (no holes)
- Dimensions: 60 × 27 × 16 mm
- Weight: 34 g
FT ESC 100A 1-in-1 6-12S (32-bit) Speed Controller
The FT ESC 100A 1-in-1 speed controller is designed for installation on industrial FPV systems with a 6–12S power supply. The controller is rated for a continuous current of up to 100A and is perfectly suited for controlling powerful motors on large multicopters (18–22 inches) and fixed-wing UAVs.
Manufacturer: FT3 432₴
In stock < 1000 pcs.
Description
The FT ESC 100A 1-in-1 speed controller is a powerful single-channel ESC for controlling one motor with 6–12S power support. It is convenient for installation directly on the arm near the motor and is rated for a continuous current of up to 100A.
It is optimal for heavy-lift systems with 52xx and 60xx motors, as well as for large fixed-wing UAVs. Control is provided by the STM32G071 microcontroller with AM32 firmware. PWM and DShot are supported. The current sensor and telemetry allow for accurate monitoring of operating parameters.
Through settings, you can define the rotation direction, timing, and other characteristics. The ESC is built on a 6-layer PCB with 3oz copper, features compact dimensions of 65 × 32 mm, and is designed for screwless arm mounting.
Wiring Diagram
Package Contents
User Manual
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 1
- Direct Current: 100A × 1
- Peak Current: 180A
- Input Voltage: 6–12S (15–52V)
- Microcontroller (MCU): 32-bit STM32G071 (64 MHz)
- Firmware: AM32
- Protocols: PWM / Oneshot / Multishot / DShot 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 6-layer, 3oz copper
- MOSFET: 80V / 420A / 1.2mΩ (6 pcs)
- Capacitors: 2 × 470µF / 63V (external)
- BEC: None
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: Arm mount (no holes)
- Dimensions: 60 × 27 × 16 mm
- Weight: 34 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 3 329₴ |
| From 100 to 999 | 3 260₴ |
