Description
The FT 4220 650KV motor is designed for heavy-duty builds. The 12N14P configuration and 6S power (max 25.2 V) are perfectly suited for the stable operation of FPV platforms with massive 13–15 inch propellers, ensuring high thrust and predictable control.
The 650KV rating, combined with the massive Ø49.5 × 58 mm rotor, delivers significant torque at low RPMs. With a peak power of 1961.8 W, this brushless drone motor provides ample potential for working with large propellers and generating high lift.
The built-in turbine-style cooling ensures efficient heat dissipation. The internal resistance of 21 mΩ helps reduce resistive losses and winding temperatures during high-current operation. A stable efficiency rate is maintained even at a peak current of up to 102 A.
The motor is engineered for specialized applications: heavy-lift multicopters and large-scale long-range platforms. Its weight (261 g) is fully justified by the drone’s ability to hover for extended periods with a payload without a critical loss of thrust.
Reliable power electronics are necessary for safe operation. The design of this drone motor for 13″–15″ propellers features an enlarged Ø30 mm (4 × M4) mounting base, requiring sufficiently wide frame arms. Given the continuous current draw of up to 67.3 A and peak loads up to 102 A, it is highly recommended to use Electronic Speed Controllers (ESCs) capable of sustaining continuous currents of 70–80 A and peaks over 100 A in a 6S configuration.
Features & Specifications
- 650 RPM/V rating for spinning heavy 13″–15″ propellers;
- large 4220 stator size provides significant torque;
- maximum power up to 1961.8 W;
- turbine-style internal cooling system;
- 6 mm high-precision hardened shaft and Ø30 mm (4 × M4) mounting base;
- reliable NMB / NSK bearings.

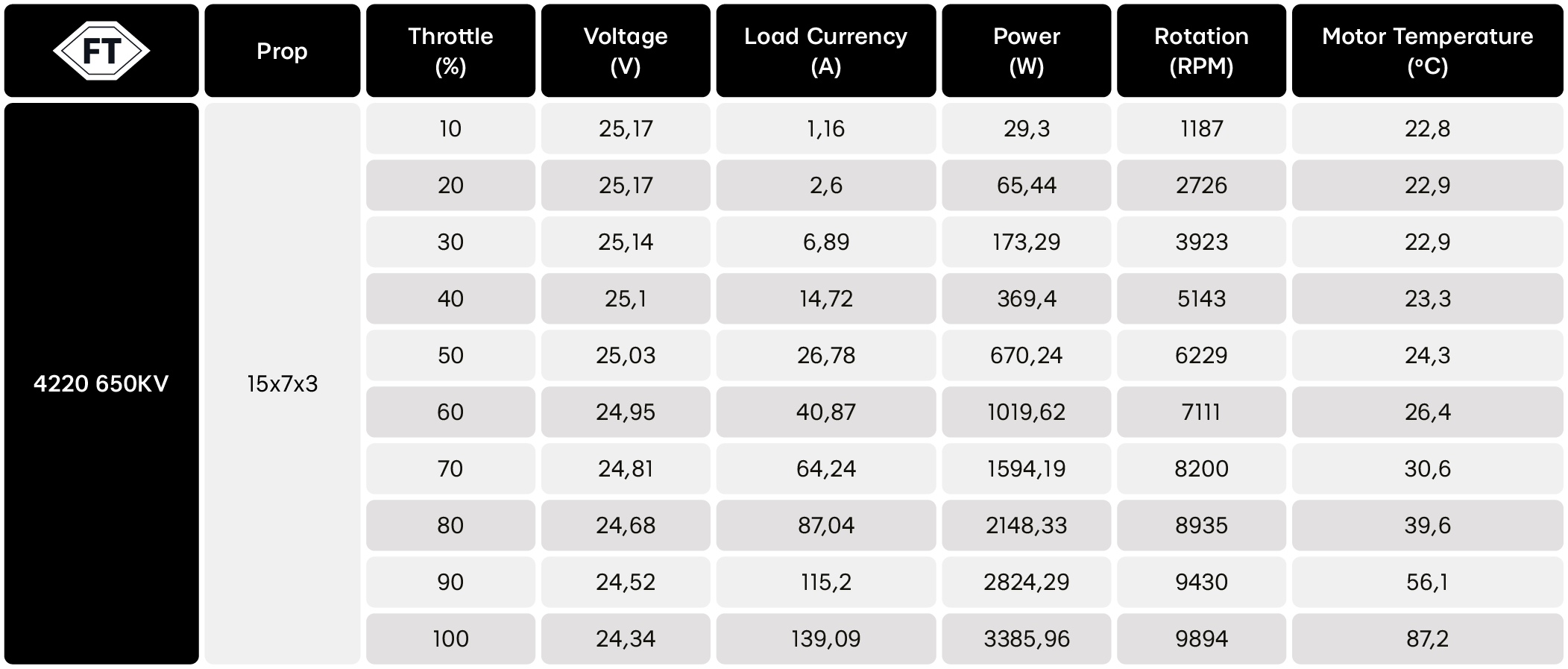

Thrust Test Results

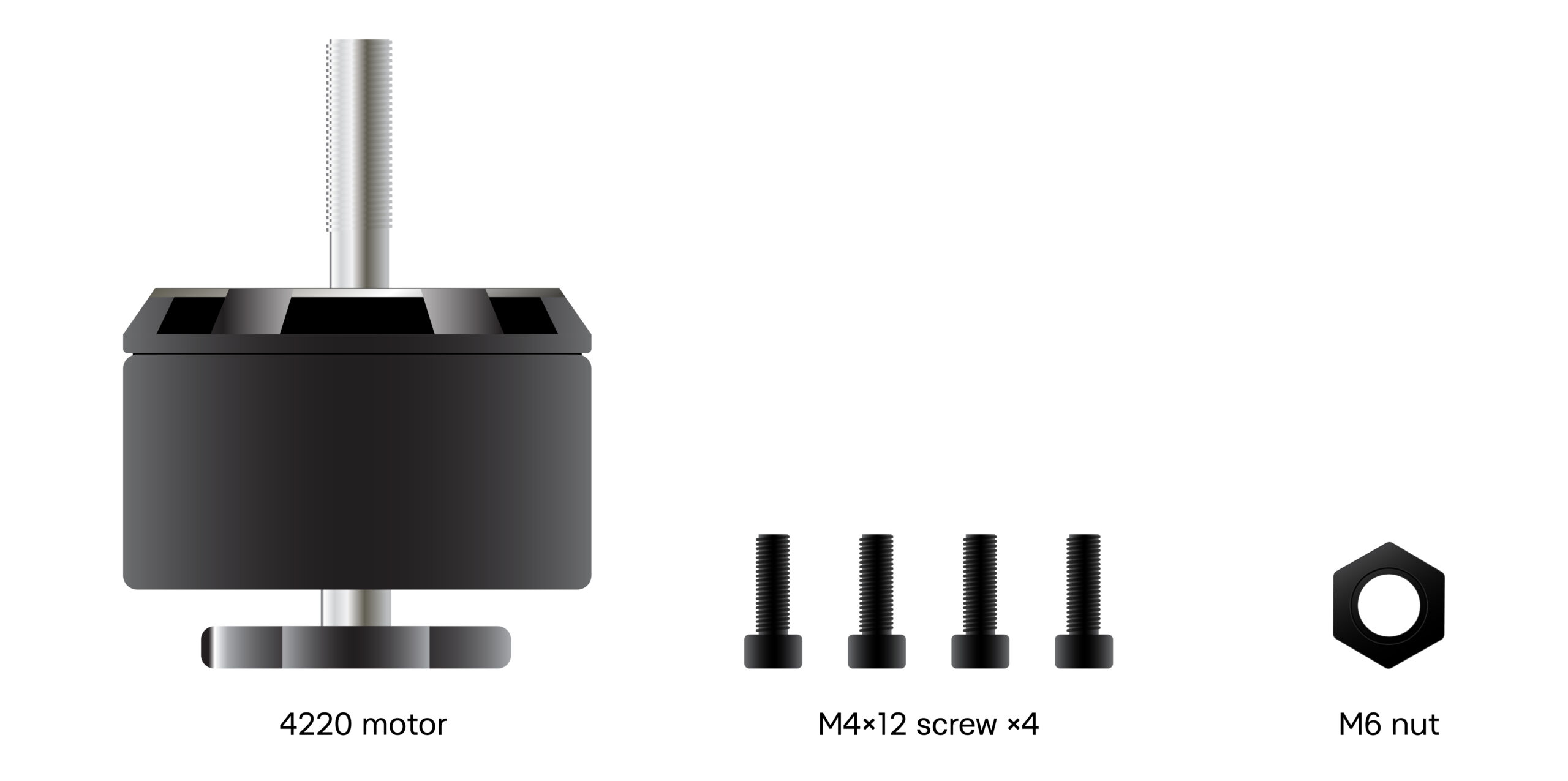

Package Includes
- FT 4220 650KV Motor — 1 pc.
- M4×12 Screw — 4 pcs.
- M6 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 650 RPM/V
- Operating Voltage: 6S (max 25.2 V)
- Max Power: up to 1961.8 W
- Max Current: up to 102 A (peak) / 67.3 A (continuous)
- Idle Current: 1.79 A
- Internal Resistance: 21 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø49.5 × 58 mm
- Mounting Pattern: Ø30 mm (4 × M4)
- Recommended Propellers: 13″–15″
- Propeller Mount: M6 nut
- Shaft: 6 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 16 AWG, 260 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 261 g
Brushless Motor for FPV Drone FT 4220 650KV 6S
The FT 4220 650KV motor, featuring a Ø49.5 × 58 mm rotor and a maximum power of up to 1961.8 W, is designed for builds with 13–15 inch propellers and 6S power. It is widely used on heavy FPV drones and powerful heavy-lift platforms, as it ensures high flight speeds and instant acceleration under load.
Manufacturer: FT2 187₴
Out of stock
Description
The FT 4220 650KV motor is designed for heavy-duty builds. The 12N14P configuration and 6S power (max 25.2 V) are perfectly suited for the stable operation of FPV platforms with massive 13–15 inch propellers, ensuring high thrust and predictable control.
The 650KV rating, combined with the massive Ø49.5 × 58 mm rotor, delivers significant torque at low RPMs. With a peak power of 1961.8 W, this brushless drone motor provides ample potential for working with large propellers and generating high lift.
The built-in turbine-style cooling ensures efficient heat dissipation. The internal resistance of 21 mΩ helps reduce resistive losses and winding temperatures during high-current operation. A stable efficiency rate is maintained even at a peak current of up to 102 A.
The motor is engineered for specialized applications: heavy-lift multicopters and large-scale long-range platforms. Its weight (261 g) is fully justified by the drone’s ability to hover for extended periods with a payload without a critical loss of thrust.
Reliable power electronics are necessary for safe operation. The design of this drone motor for 13″–15″ propellers features an enlarged Ø30 mm (4 × M4) mounting base, requiring sufficiently wide frame arms. Given the continuous current draw of up to 67.3 A and peak loads up to 102 A, it is highly recommended to use Electronic Speed Controllers (ESCs) capable of sustaining continuous currents of 70–80 A and peaks over 100 A in a 6S configuration.
Features & Specifications
- 650 RPM/V rating for spinning heavy 13″–15″ propellers;
- large 4220 stator size provides significant torque;
- maximum power up to 1961.8 W;
- turbine-style internal cooling system;
- 6 mm high-precision hardened shaft and Ø30 mm (4 × M4) mounting base;
- reliable NMB / NSK bearings.
Thrust Test Results
Package Includes
- FT 4220 650KV Motor — 1 pc.
- M4×12 Screw — 4 pcs.
- M6 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 650 RPM/V
- Operating Voltage: 6S (max 25.2 V)
- Max Power: up to 1961.8 W
- Max Current: up to 102 A (peak) / 67.3 A (continuous)
- Idle Current: 1.79 A
- Internal Resistance: 21 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø49.5 × 58 mm
- Mounting Pattern: Ø30 mm (4 × M4)
- Recommended Propellers: 13″–15″
- Propeller Mount: M6 nut
- Shaft: 6 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 16 AWG, 260 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 261 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 2 121₴ |
| From 100 to 999 | 2 078₴ |
