Description

The FT PDB X8 4–12S 300 A is a power distribution board designed for configurations supporting up to 8 motors. It receives power from 4–12S batteries and distributes it across 8 channels. The allowable continuous current of up to 300 A per channel allows the FT PDB X8 to be used in high-load power systems where the board needs to provide substantial current throughput. This configuration makes this PDB an effective hub for heavy multirotor UAVs.

A distinct advantage of this model is the built-in BECs (5V, 9V, and 12V at 5A each) for powering the receiver, video transmitter, camera, flight controller, or other peripherals. This allows you to get the required voltage for your electronics without using an additional converter. A built-in analog current sensor provides measurement of the power system’s consumption, and there are also solder pads for outputting telemetry from the connected motors to the flight controller.

The 8 power outputs of the FT PDB are equipped with XT60 (Female) connectors and solder pads. Opposite each power output are contacts corresponding to the signal channels for motor control, S1–S8. The LED indication on the FT Power Distribution Board X8 provides visual readiness monitoring for the BECs (separately for 5V, 9V, and 12V). Mounting holes for M3 dampeners with 30.5 × 30.5 and 45.5 × 45.5 mm patterns expand the installation options on compatible frames.

Wiring Diagram

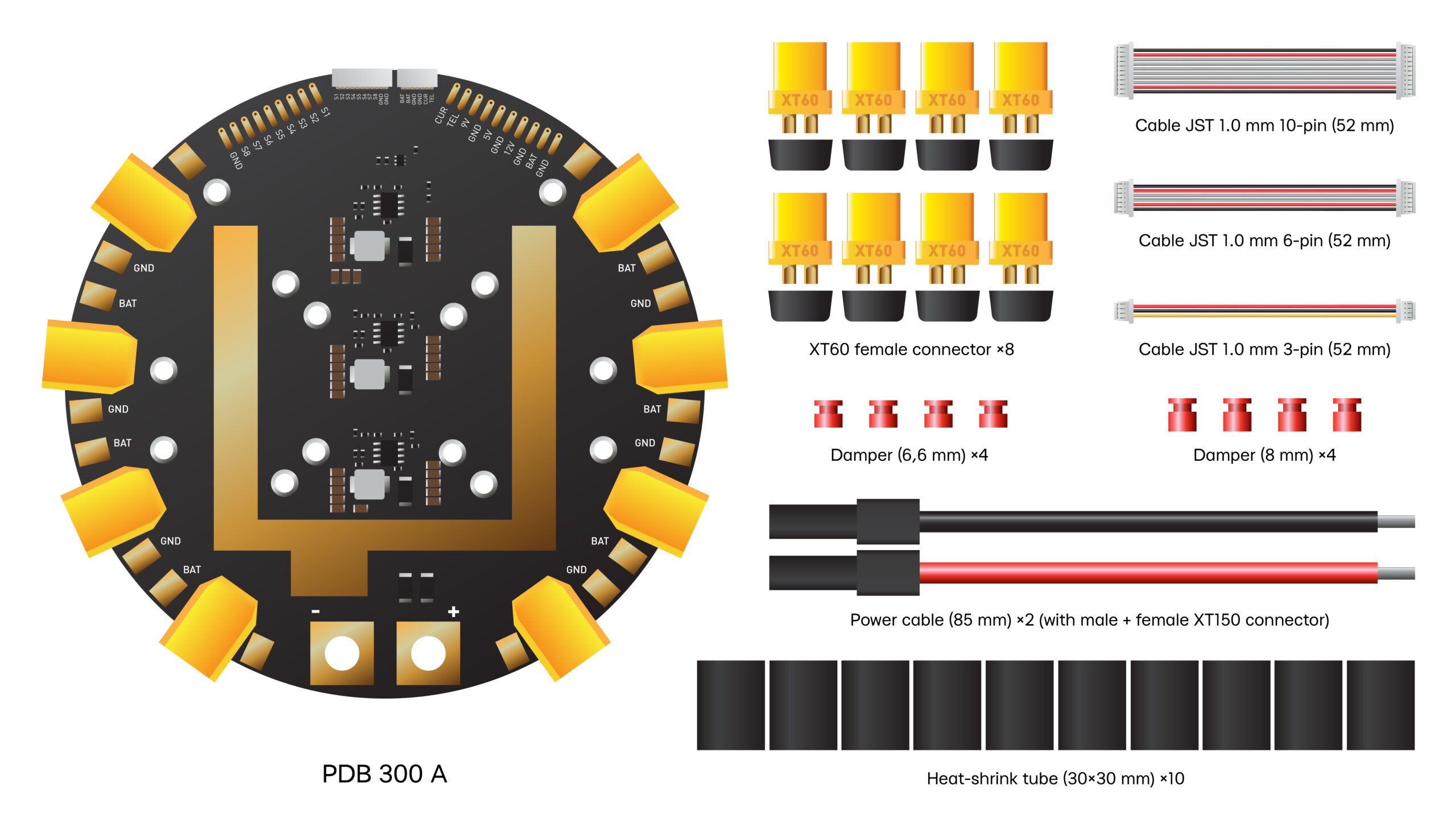

Package Contents

For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.

Technical characteristics

Motor Support: 8 (S1–S8)
Input Voltage: 4–12S (16–50.4V)
Output Voltage: VBAT
Continuous Current: 300A
BEC Outputs: 5V / 5A, 9V / 5A, 12V / 5A
Current Sensor: Built-in
Telemetry: Supported
ESC Power Connectors: 8 × XT60
Power Contacts: BAT, GND
LED Indication: Built-in
Operating Temperature: -20°C to +55°C
Board Material: Heavy Copper FR-4 PCB
Mounting Holes: 30.5 × 30.5 mm / 45.5 × 45.5 mm (M3)
Dimensions: Ø140 mm (Ø150 mm with connectors)
Weight: 112 g

FT PDB X8 4–12S 300 A Power Distribution Board

Name: FT PDB X8 4–12S 300 A Power Distribution Board
Brand: FT Systems
SKU: IT-GFS-00072
Price: 2998 UAH
Availability: InStock

The FT PDB X8 4–12S 300 A power distribution board is a solution supporting 8 motors for multirotor configurations. Built-in 5V, 9V, and 12V BECs at 5A each provide power to peripherals, while the analog current sensor allows monitoring of the power system’s total consumption. The availability of two mounting hole patterns, 20 × 20 and 30.5 × 30.5 mm, ensures compatibility with most modern FPV frames.
