Description
The FT ESC 70A 1-in-1 speed controller is designed for controlling motors in multicopters and fixed-wing UAVs. It is convenient for FPV builds where it is necessary to install an individual ESC on each motor or use a single-channel controller in fixed-wing aircraft.
The model is rated for a continuous current of up to 70A and operation from 3–6S batteries. The ESC runs on a 32-bit MCU with AM32 firmware. PWM and digital DShot protocols are supported for motor connection and control, making the device compatible with any flight controller.
The 70A single-channel ESC features a built-in current sensor, and telemetry support allows for receiving data on the power system’s operation during flight. The controller is made of a 6-layer PCB with 3oz copper, has dimensions of 47 × 32 mm, and is designed for mounting directly on the arms of quad-, hexa-, and octocopters, as well as on fixed-wing UAVs.
Wiring Diagram

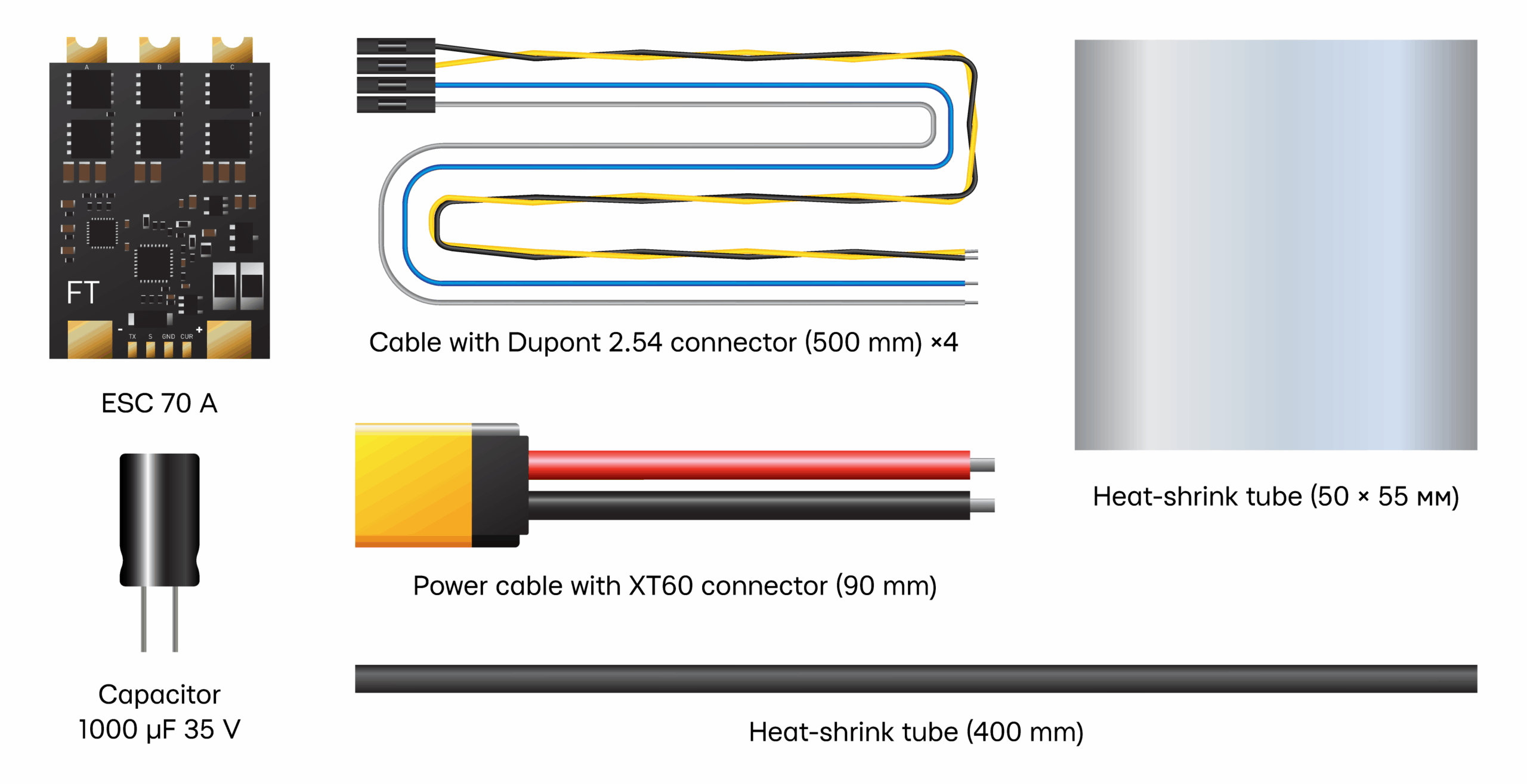

Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 1
- Direct Current: 70A
- Input Voltage: 3–6S
- Microcontroller (MCU): 32-bit
- Firmware: AM32
- Protocols: PWM / Oneshot / Multishot / DShot 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 6-layer, 3oz copper
- MOSFET: 60V / 0.9mΩ
- Capacitors: 1000µF / 35V (external)
- TVS Protection: 1 × 600W
- BEC: None
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: Arm mount (no holes)
- Dimensions: 47 × 32 mm
- Weight: 10 g
FT ESC 70A 1-in-1 3-6S (32-bit) Speed Controller
The FT ESC 70A 1-in-1 speed controller is designed to control motors in multicopters and fixed-wing UAVs. It is compatible with motors consuming up to 70A of continuous current. It is equipped with a 32-bit MCU and runs on AM32 firmware.
Manufacturer: FT667₴
Out of stock
Description
The FT ESC 70A 1-in-1 speed controller is designed for controlling motors in multicopters and fixed-wing UAVs. It is convenient for FPV builds where it is necessary to install an individual ESC on each motor or use a single-channel controller in fixed-wing aircraft.
The model is rated for a continuous current of up to 70A and operation from 3–6S batteries. The ESC runs on a 32-bit MCU with AM32 firmware. PWM and digital DShot protocols are supported for motor connection and control, making the device compatible with any flight controller.
The 70A single-channel ESC features a built-in current sensor, and telemetry support allows for receiving data on the power system’s operation during flight. The controller is made of a 6-layer PCB with 3oz copper, has dimensions of 47 × 32 mm, and is designed for mounting directly on the arms of quad-, hexa-, and octocopters, as well as on fixed-wing UAVs.
Wiring Diagram
Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 1
- Direct Current: 70A
- Input Voltage: 3–6S
- Microcontroller (MCU): 32-bit
- Firmware: AM32
- Protocols: PWM / Oneshot / Multishot / DShot 300 / 600 / 1200 / 2400
- Current Sensor: Built-in
- Telemetry: Supported
- PCB: 6-layer, 3oz copper
- MOSFET: 60V / 0.9mΩ
- Capacitors: 1000µF / 35V (external)
- TVS Protection: 1 × 600W
- BEC: None
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: Arm mount (no holes)
- Dimensions: 47 × 32 mm
- Weight: 10 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 647₴ |
| From 100 to 999 | 634₴ |
