Description
The FT 6007 380KV motor is a specialized engine for heavy-duty and industrial applications. It features a 24N28P configuration, is designed for 6S–8S power (max 33.6 V), and is engineered for 15–21 inch propellers to ensure the stability of large platforms.
The low KV rating (380) combined with the wide Ø67 × 24 mm rotor provides high torque and is perfectly suited for operating large propellers at relatively low RPMs. The internal resistance of 43 mΩ minimizes stator heating. With a peak power of up to 1685.4 W, the motor generates high thrust, while the internal turbine facilitates efficient heat dissipation when operating under load.
This powerful multicopter motor is built for long flight times with payloads. It is used on heavy 15″–21″ quadcopters and long-range platforms with extended hover times. The 380KV specification combined with a current of up to 57.6 A ensures high torque potential and stable operation, guaranteeing predictable FPV drone flights with a payload.
Proper mounting is required for installation. The Ø32 mm (4 × M4) base is mounted on wide, reinforced frames. The operating current reaches 57.6 A, so an ESC with a 65–80 A rating is necessary. The motor operates on a 6S–8S battery and requires compatible flight electronics rated for voltages up to 33.6 V.
Features & Specifications
- drone motor for 15–21″ propellers featuring a moderate 380KV rating;
- maximum power up to 1685.4 W;
- Ø32 mm (4 × M4) mounting base;
- secure propeller mounting with a pressure plate and two M3 nuts;
- turbine-style internal cooling;
- weight — 157 g.

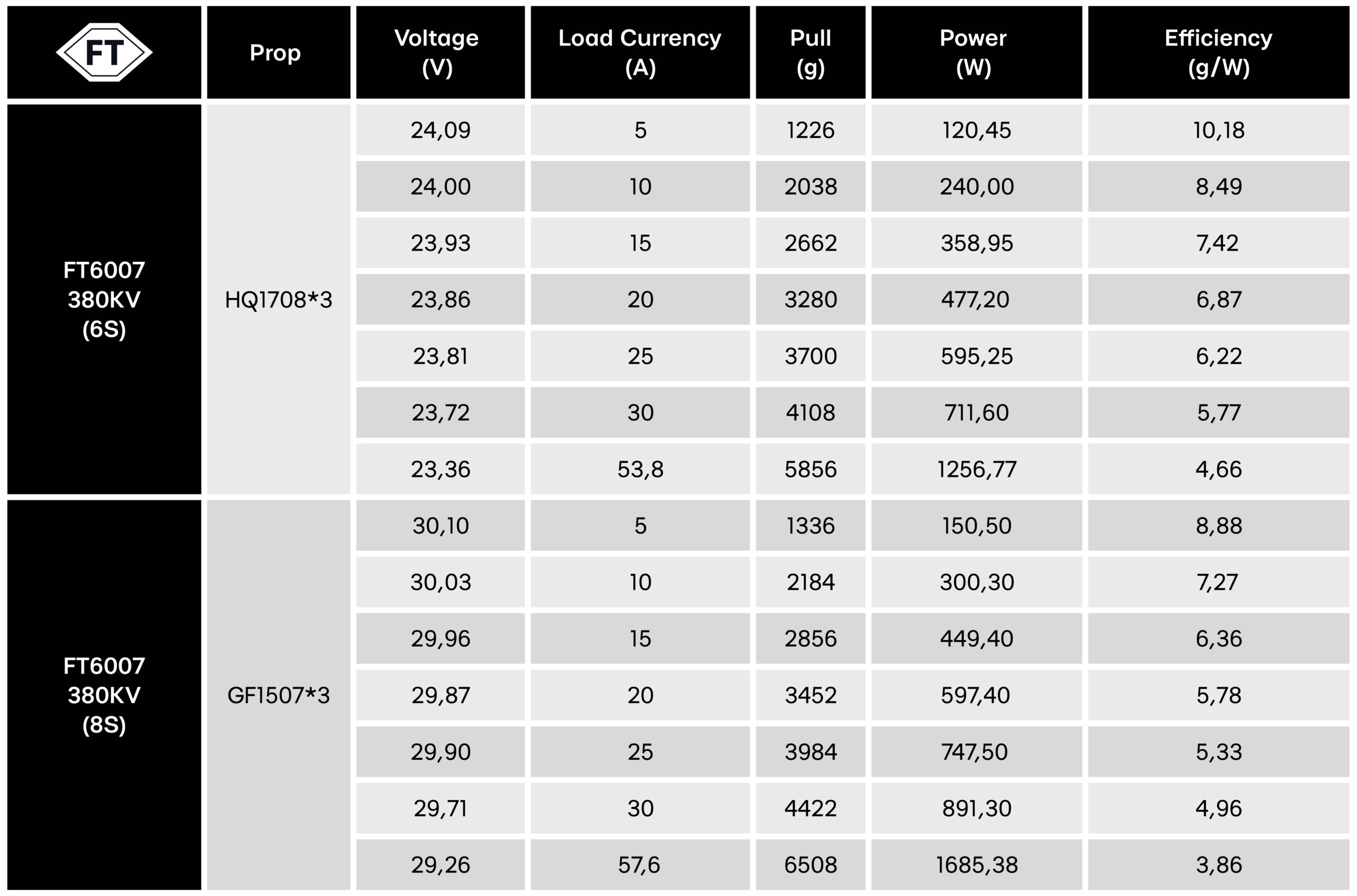

Thrust Test Results

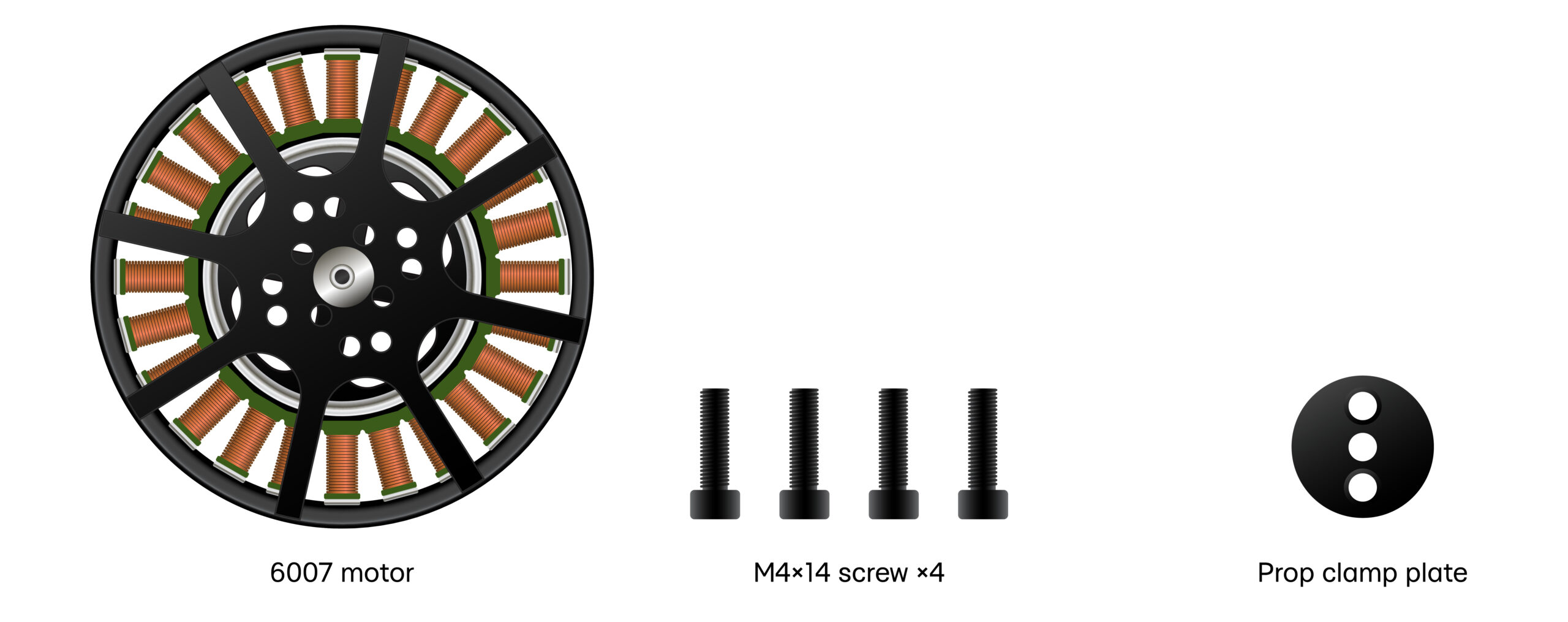

Package Includes
- FT 6007 380KV Motor — 1 pc.
- M4×14 Screw — 4 pcs.
- Spacer (washer with two holes) — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 380 RPM/V
- Operating Voltage: 6S–8S (max 33.6 V)
- Max Power: up to 1685.4 W
- Max Current: up to 57.6 A
- Idle Current: 0.97 A
- Internal Resistance: 43 mΩ
- Configuration: 24N28P
- Rotor Dimensions: Ø67 × 24 mm
- Mounting Pattern: Ø32 mm (4 × M4)
- Recommended Propellers: 15-21″
- Propeller Mount: pressure plate and 2 M3 nuts
- Bearings: NMB / NSK
- Wires: 14 AWG, 200 mm (direct exit 80 mm), silicone insulation
- Cooling: internal, turbine-style
- Weight: 157 g
Brushless Motor for FPV Drone FT 6007 380KV 6S–8S
The FT 6007 380KV motor, featuring a Ø67 × 24 mm rotor and a maximum power of up to 1685.4 W, is designed for builds with 15–21 inch propellers and 6S–8S power. Thanks to its low KV rating (380) and large magnetic contact area, it is perfectly suited for heavy industrial quad-, hexa-, and octocopters, large agricultural drones, and heavy-lift platforms.
Manufacturer: FT2 825₴
Out of stock
Description
The FT 6007 380KV motor is a specialized engine for heavy-duty and industrial applications. It features a 24N28P configuration, is designed for 6S–8S power (max 33.6 V), and is engineered for 15–21 inch propellers to ensure the stability of large platforms.
The low KV rating (380) combined with the wide Ø67 × 24 mm rotor provides high torque and is perfectly suited for operating large propellers at relatively low RPMs. The internal resistance of 43 mΩ minimizes stator heating. With a peak power of up to 1685.4 W, the motor generates high thrust, while the internal turbine facilitates efficient heat dissipation when operating under load.
This powerful multicopter motor is built for long flight times with payloads. It is used on heavy 15″–21″ quadcopters and long-range platforms with extended hover times. The 380KV specification combined with a current of up to 57.6 A ensures high torque potential and stable operation, guaranteeing predictable FPV drone flights with a payload.
Proper mounting is required for installation. The Ø32 mm (4 × M4) base is mounted on wide, reinforced frames. The operating current reaches 57.6 A, so an ESC with a 65–80 A rating is necessary. The motor operates on a 6S–8S battery and requires compatible flight electronics rated for voltages up to 33.6 V.
Features & Specifications
- drone motor for 15–21″ propellers featuring a moderate 380KV rating;
- maximum power up to 1685.4 W;
- Ø32 mm (4 × M4) mounting base;
- secure propeller mounting with a pressure plate and two M3 nuts;
- turbine-style internal cooling;
- weight — 157 g.
Thrust Test Results
Package Includes
- FT 6007 380KV Motor — 1 pc.
- M4×14 Screw — 4 pcs.
- Spacer (washer with two holes) — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 380 RPM/V
- Operating Voltage: 6S–8S (max 33.6 V)
- Max Power: up to 1685.4 W
- Max Current: up to 57.6 A
- Idle Current: 0.97 A
- Internal Resistance: 43 mΩ
- Configuration: 24N28P
- Rotor Dimensions: Ø67 × 24 mm
- Mounting Pattern: Ø32 mm (4 × M4)
- Recommended Propellers: 15-21″
- Propeller Mount: pressure plate and 2 M3 nuts
- Bearings: NMB / NSK
- Wires: 14 AWG, 200 mm (direct exit 80 mm), silicone insulation
- Cooling: internal, turbine-style
- Weight: 157 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 2 740₴ |
| From 100 to 999 | 2 684₴ |
