Description
The FT ESC 85A 4-in-1 speed controller combines 4 channels with a continuous current of up to 85A and is designed for a 6–12S power supply. The 85A ESC is perfectly suited for heavy-lift quadcopters (13–21 inches) with 42xx, 52xx, and 62xx motors.
The model is powered by a 32-bit ARM microcontroller running at 120 MHz and features AM32 v2.18 firmware. The device supports PWM, Oneshot, Multishot, and digital DShot protocols. The board dimensions are 113 × 76 mm.
The speed controller is equipped with a 5V / 5A BEC to power compatible peripherals. External capacitors and TVS diodes are responsible for filtering and protection. Mounting holes of 30.5 × 30.5 mm simplify installation into a compatible stack.
Wiring Diagram

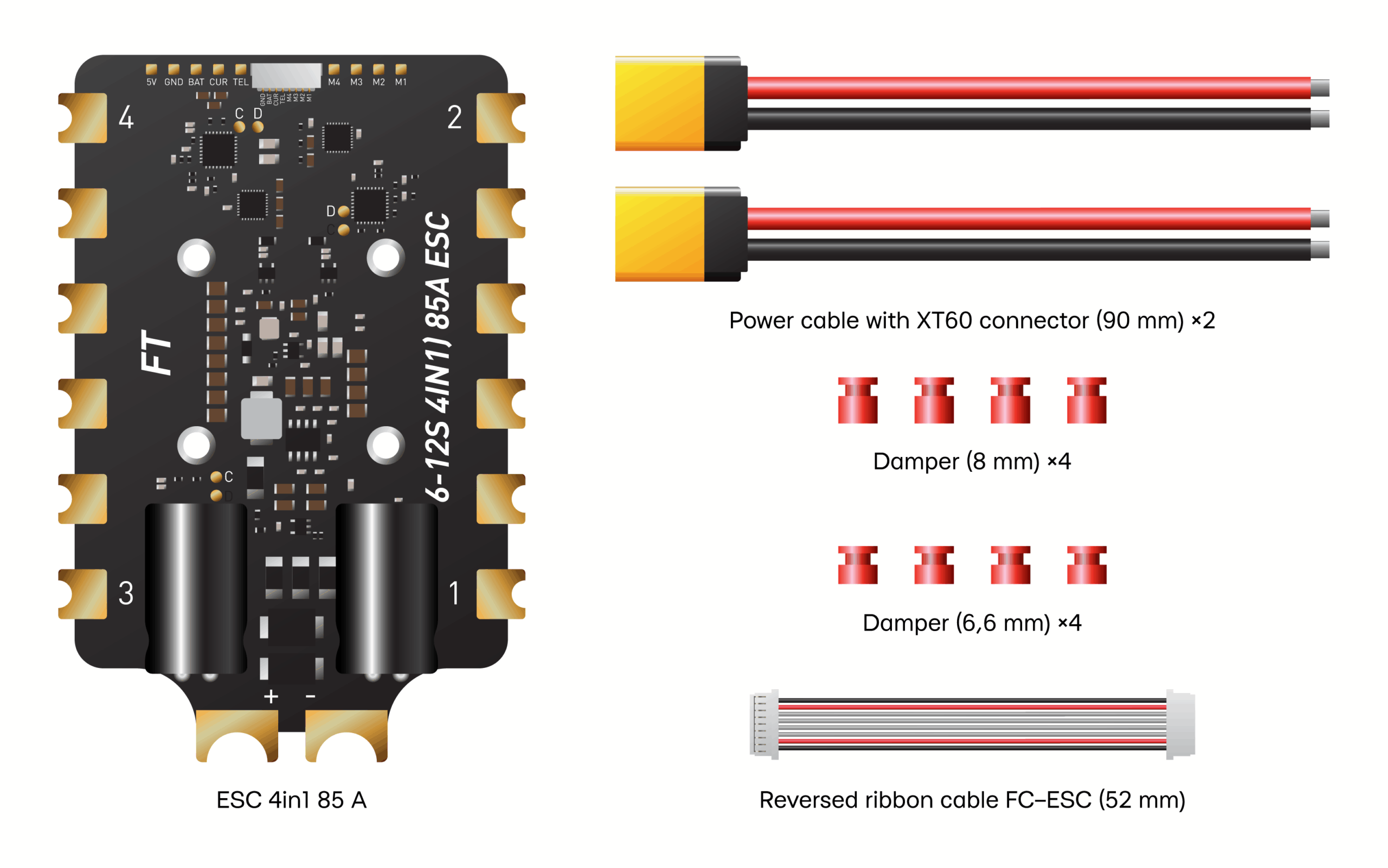

Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 4
- Direct Current: 85A × 4
- Input Voltage: 6–12S
- Output Voltage: VBAT
- Microcontroller (MCU): 32-bit ARM (120 MHz)
- Firmware: AM32 v2.18
- Protocols: PWM / Oneshot125 / Oneshot42 / Multishot / DShot 150 / 300 / 600 / 1200 / 2400
- Current Sensor: Analog
- PCB: 8-layer FR4, 3oz copper
- MOSFET: 85V / 1.2mΩ
- Capacitors: 2 × 1000µF / 63V (external)
- TVS Protection: 4 × 1500W
- BEC: 5V / 5A
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 113 × 76 mm
- Weight: 100 g
FT ESC 85A 4-in-1 6-12S (32-bit) Speed Controller
The FT ESC 85A 4-in-1 speed controller is designed for heavy FPV builds with a 6–12S power supply. Each channel is rated for a continuous current of 85A. It is equipped with a 32-bit ARM microcontroller and supports operation with a current sensor and telemetry.
Manufacturer: FT4 813₴
Out of stock
Description
The FT ESC 85A 4-in-1 speed controller combines 4 channels with a continuous current of up to 85A and is designed for a 6–12S power supply. The 85A ESC is perfectly suited for heavy-lift quadcopters (13–21 inches) with 42xx, 52xx, and 62xx motors.
The model is powered by a 32-bit ARM microcontroller running at 120 MHz and features AM32 v2.18 firmware. The device supports PWM, Oneshot, Multishot, and digital DShot protocols. The board dimensions are 113 × 76 mm.
The speed controller is equipped with a 5V / 5A BEC to power compatible peripherals. External capacitors and TVS diodes are responsible for filtering and protection. Mounting holes of 30.5 × 30.5 mm simplify installation into a compatible stack.
Wiring Diagram
Package Contents
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- Channels: 4
- Direct Current: 85A × 4
- Input Voltage: 6–12S
- Output Voltage: VBAT
- Microcontroller (MCU): 32-bit ARM (120 MHz)
- Firmware: AM32 v2.18
- Protocols: PWM / Oneshot125 / Oneshot42 / Multishot / DShot 150 / 300 / 600 / 1200 / 2400
- Current Sensor: Analog
- PCB: 8-layer FR4, 3oz copper
- MOSFET: 85V / 1.2mΩ
- Capacitors: 2 × 1000µF / 63V (external)
- TVS Protection: 4 × 1500W
- BEC: 5V / 5A
- Cooling: Passive
- Motor Connection: Solder pads
- Mounting: 30.5 × 30.5 mm (M3)
- Dimensions: 113 × 76 mm
- Weight: 100 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 4 669₴ |
| From 100 to 999 | 4 572₴ |
