Description
The FT 4220 400KV motor is designed for heavy 15″–17″ builds powered by a high-capacity 6S–8S (max 33.6 V) battery. The 4220 stator, combined with a lower KV rating (400KV), provides high torque, controlled dynamics, and stability under load.
The Ø49.5 × 58 mm rotor dimensions paired with the low 400KV rating allow it to maintain sufficient thrust with efficient power consumption.
The motor develops a peak power of up to 2186.7 W at a maximum current of up to 75.3 A. The internal resistance of this drone motor for 15-17″ props is 46 mΩ, ensuring system stability under heavy loads without overheating.
It is used as a motor for heavy drones and 15–17 inch heavy-lift quadcopters, long-range builds, agricultural drones, and aerial photography platforms, where smooth control, high thrust, and battery efficiency at cruising speeds are critical.
The motor is designed for 6S–8S systems and requires a high-current Electronic Speed Controller (ESC). It features an enlarged Ø30 mm (4 × M4) mounting base and an M6 nut for secure propeller fastening. The 260 mm long 16 AWG power wires ensure convenient wiring and installation.
Features & Specifications
- 400 RPM/V rating and Ø49.5 × 58 mm rotor for 6S–8S systems and 15–17″ props;
- peak power up to 2186.7 W;
- reliable NMB / NSK bearings for heavy loads;
- active turbine-style internal cooling;
- 6 mm hardened shaft and enlarged Ø30 mm (4 × M4) mounting base;
- weight — 255 g.

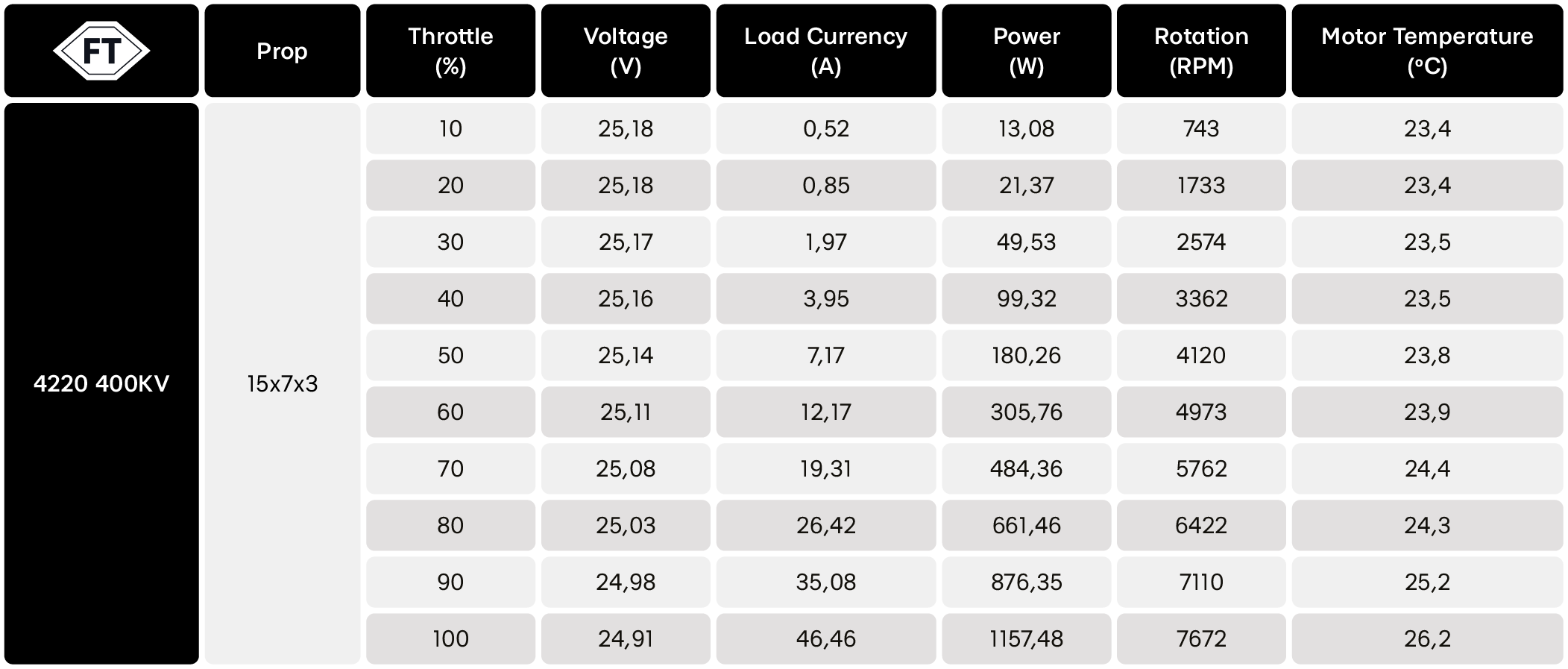

Thrust Test Results
Package Includes
- FT 4220 400KV Motor — 1 pc.
- M4×12 Screw — 4 pcs.
- M6 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 400 RPM/V
- Operating Voltage: 6S–8S (max 33.6 V)
- Max Power: up to 2186.7 W
- Max Current: up to 75.3 A
- Idle Current: 1.9 A
- Internal Resistance: 46 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø49.5 × 58 mm
- Mounting Pattern: Ø30 mm (4 × M4)
- Recommended Propellers: 15″–17″
- Propeller Mount: M6 nut
- Shaft: 6 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 16 AWG, 260 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 255 g
Brushless Motor for FPV Drone FT 4220 400KV 6S–8S
The FT 4220 400KV motor, featuring a Ø49.5 × 58 mm rotor and a peak power of up to 2186.7 W, is designed for builds with 15–17 inch propellers powered by 6S–8S batteries. Thanks to its massive torque and high energy efficiency, it is perfectly suited for heavy-lift quadcopters, agricultural drones, aerial photography platforms, and long-range drones requiring extended hover times.
Manufacturer: FT1 881₴
In stock < 1000 pcs.
Description
The FT 4220 400KV motor is designed for heavy 15″–17″ builds powered by a high-capacity 6S–8S (max 33.6 V) battery. The 4220 stator, combined with a lower KV rating (400KV), provides high torque, controlled dynamics, and stability under load.
The Ø49.5 × 58 mm rotor dimensions paired with the low 400KV rating allow it to maintain sufficient thrust with efficient power consumption.
The motor develops a peak power of up to 2186.7 W at a maximum current of up to 75.3 A. The internal resistance of this drone motor for 15-17″ props is 46 mΩ, ensuring system stability under heavy loads without overheating.
It is used as a motor for heavy drones and 15–17 inch heavy-lift quadcopters, long-range builds, agricultural drones, and aerial photography platforms, where smooth control, high thrust, and battery efficiency at cruising speeds are critical.
The motor is designed for 6S–8S systems and requires a high-current Electronic Speed Controller (ESC). It features an enlarged Ø30 mm (4 × M4) mounting base and an M6 nut for secure propeller fastening. The 260 mm long 16 AWG power wires ensure convenient wiring and installation.
Features & Specifications
- 400 RPM/V rating and Ø49.5 × 58 mm rotor for 6S–8S systems and 15–17″ props;
- peak power up to 2186.7 W;
- reliable NMB / NSK bearings for heavy loads;
- active turbine-style internal cooling;
- 6 mm hardened shaft and enlarged Ø30 mm (4 × M4) mounting base;
- weight — 255 g.
Thrust Test Results
Package Includes
- FT 4220 400KV Motor — 1 pc.
- M4×12 Screw — 4 pcs.
- M6 Propeller Nut — 1 pc.
For orders of 1000+ units, pricing is negotiated individually. Please contact us for a custom quote.
Technical characteristics
- KV (Velocity Constant): 400 RPM/V
- Operating Voltage: 6S–8S (max 33.6 V)
- Max Power: up to 2186.7 W
- Max Current: up to 75.3 A
- Idle Current: 1.9 A
- Internal Resistance: 46 mΩ
- Configuration: 12N14P
- Rotor Dimensions: Ø49.5 × 58 mm
- Mounting Pattern: Ø30 mm (4 × M4)
- Recommended Propellers: 15″–17″
- Propeller Mount: M6 nut
- Shaft: 6 mm, hardened, high-precision
- Bearings: NMB / NSK
- Wires: 16 AWG, 260 mm, silicone insulation
- Cooling: internal, turbine-style
- Weight: 255 g
Discounts are applied automatically at checkout
| Quantity | Price per unit |
|---|---|
| From 10 to 99 | 1 825₴ |
| From 100 to 999 | 1 787₴ |
